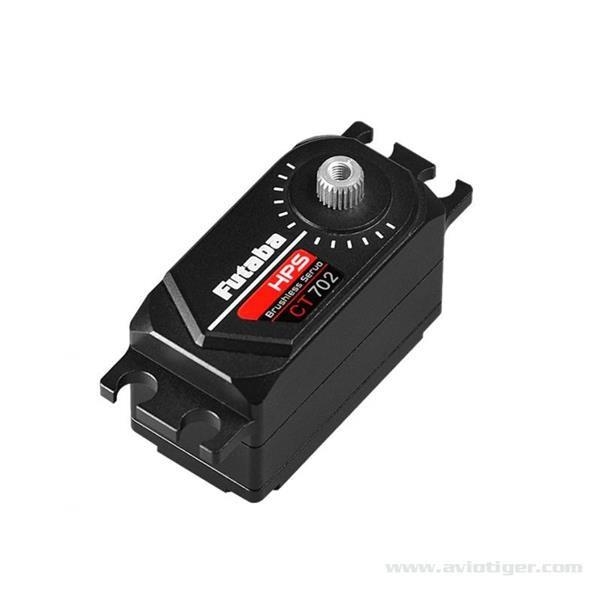

REPLACES THE CT700 SERVO AND THE CT701. Works with a new circuit.
New "Low profile" Servo for high power RC model with metal housing and metal gear New HPS brushless motor technology specially designed for more performance and better cooling. (SR UR compatible).
This servo has been developed for use with the Futaba F4G
Technical characteristics: < /B>
- High performance HPS digital servo S.BUS2
- Metal housing and metal gear
- Brushless HPS motor technology
- T-FHSS SR (Super Response) and "UR" compatible (Ultra Fast Response)
- High voltage
- Ball bearing
- Low wear potentiometer
- High resolution
- High feedback precision
With new technology HPS, the power consumption is less over the entire operating time. Like any S.BUS2 servo, the HPS-CT702 can be connected to all conventional receivers with PWM modulation and can be optimally adapted to the respective application conditions by programming.
The servo is fully compatible with the SR mode ("Super Response": fastest signal transmission) of the T7XC, T7PX and T4PM.
This servo can be programmed in different ways:
1. With the practical SBC-1 programmer
2. On the PC with the CIU-3 USB adapter
3. On the S.BUS connection of the transmitter
The following parameters can be defined:
• Assignment of S.BUS channels
• Servo rotation direction
• Soft start (on/off)
• Mode selection in case of failure of the Hold or Free signal
• Smooth operation of the servo (on / stop)
• Servo position (servo tester)
• Servo center adjustment +/- 300 µs (about 30 degrees)
• Servo speed, 0.39 - 9 seconds per 45 degrees
• Dead band (dead band) setting
• Left and right servo travel adjustment separately, approx. 50-175%
• Starting power
• Damping
• Holding power
Characteristics:
Dimensions: 40.5 x 21.0 x 26.2 mm
Weight: 54 g
Speed under 7.4V: 0.07s/60°
Torque under 7.4V: 30 kg/cm
Use: 1/10 1/8 scale kit, do not use on 1/5 scale
